Ceilings surface and perforation

The colour and the pattern of wood are not only defined by its specie, but also by the climate in which the tree grew up.
Therefore in the natural veneers the wood grain is irregular. Used in interiors provides subtle charm.

Sometimes a need occurs to use stable pattern that gives uniform impression. Gemini® veneer with its subtle variation of patterns and colours can provide these qualities without compromising a natural impression.

Nature veneer

Maple                                             Birch                                              Rotary cut birch

Ash                                                Oak                                               Beech

Oregon pine                                    Elm                                               Cherry

Pear                                               Mahogany                                      Teak



Gemini veneer

Gemini Pale Maple                           Gemini Wavy Maple                         Gemini Bird's eye Maple

Gemini Birch                                    Gemini Ash                                     Gemini Sandy Maple

Gemini Oak                                     Gemini Beech                                 Gemini Cherry

Gemini Pear                                    Gemini Mahogany                           Gemini Teak

Gemini Walnut                                 Gemini Wenge



Metal and painted surfaces

Matt bronze                                    Brushed steel                                  Brushed aluminium


Aluminium relief                              Painted in NCS or RAL colour



PERFORATION



Normally B= 30 mm. Edge DG for ceiling B=40mm.





Normally C= 30mm. Panels length 1480-1500 mm C=50 mm.

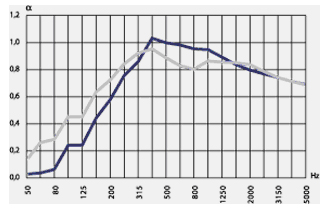

EXAMPLE

Absorption class B.

SM8 Mini slotted 8 mm
WALL: 30 mm air gap
CEILING: 200 mm air gap
A = 20mm, *B = 30mm,
**C = 30mm, D = 20mm,
E = 20mm, Ø = 8mm.
Open area: 26%.



AVAILABLE PERFORATION PATTERNS OF GUSTAFS PANEL SYSTEM:


PD8, PG5, PG8, PS2, PH10, PH8, PH5, SG5, SG8, SH5, SH8, SM5, RS8-C40, SX8, SM8

ROUND PERFORATION

PD8

PG5

PG8

PS2

PH5

PH8

PH10
SLOTTED PERFORATION

SG5


SG8


SH5

SH8

SM5

SM8

SX8
